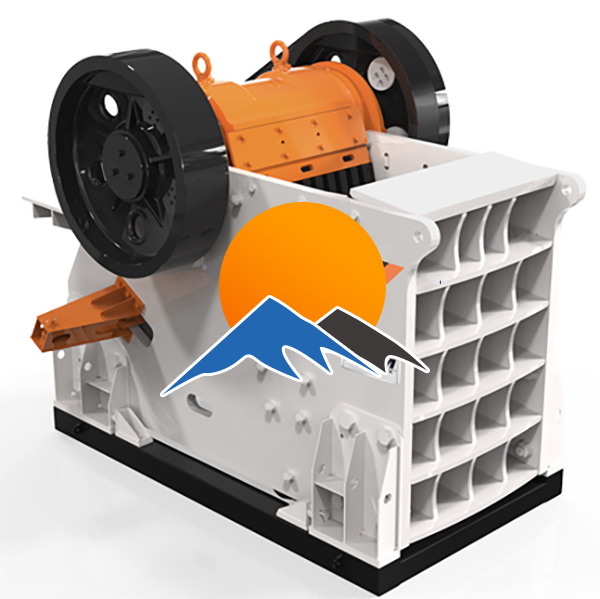

European style Jaw Crusher

Detailed Introduction to European-Style Jaw Crushers

I. Composition and Structure of European-Style Jaw Crushers

1. Modular Frame

• Constructed from high-strength low-alloy steel plates (S355JR), divided into three independent modules (upper frame, lower frame, side guards) connected by 8.8/10.9 grade high-strength bolts. This facilitates transportation (on-site assembly after 拆分) and maintenance (local module replacement).

• Internally reinforced with "box-type stiffeners" (30% more ribs than traditional PE series) for 25% higher impact resistance. Surface treated with cathodic electrophoresis (salt spray resistance ≥1000 hours) to withstand high humidity and corrosion (e.g., coastal mines).

2. High-Efficiency Crushing Mechanism

• Chamber Design: "Deep-optimized cavity" (15–20% deeper than PE series) with a rational feed-to-discharge ratio (1:4.5–1:5), increasing material throughput by 20% and reducing blockages.

• Moving & Fixed Jaws: The moving jaw features an "optimized four-bar structure" with arc-like trajectories (horizontal:vertical stroke ratio 1:1.2) to avoid over-crushing. The fixed jaw plate is reversible (double-sided) with Cr30 high-chromium cast iron and alumina ceramic inserts, improving wear resistance by 50% over traditional high manganese steel.

• Jaw Plate Fixing: Hydraulic clamping devices replace bolts, enabling jaw plate replacement in 30 seconds (vs. 2–3 hours traditionally), minimizing downtime.

3. Intelligent Transmission System

• Motor & Pulley: Equipped with IE3 premium efficiency motors (10–15% energy savings) connected to pulleys via elastic couplings (eliminating V-belts in large models to reduce losses). Pulleys have built-in cooling fins to lower bearing temperatures.

• Eccentric Shaft & Bearings: The shaft is forged from 42CrMoV (forging ratio ≥5) with UT inspection, quenched to 32–35 HRC. SKF/NSK spherical roller bearings (service life ≥100,000 hours) are paired with automatic centralized lubrication (PLC-linked, timed and 定量).

4. Hydraulic Adjustment & Protection

• Stepless Hydraulic Adjustment: Servo-hydraulic systems (20–25 MPa) enable ±0.1 mm precision in discharge opening, with remote setting via HMI or mobile app and real-time size monitoring.

• Multi-Overload Protection: Integrates pressure, vibration, and temperature sensors. Triggers alarms, speed reduction, or shutdown within 0.5 seconds when exceeding limits, storing ≥1000 fault records.

5. Environmental Auxiliary System

• Dust Control: Annular high-pressure spray systems (8–10 MPa) and side negative-pressure hoods (5000–10,000 m³/h airflow) limit dust emissions to ≤10 mg/m³ (meeting EU EN 12774).

• Noise Reduction: High-elastic polyurethane dampers (85A Shore) reduce noise to ≤80 dB, complying with EU Directive 2002/49/EC.

II. Manufacturing Processes of European-Style Jaw Crushers

1. Frame Manufacturing

• Plates are cut via fiber laser (±0.1 mm precision). Robotic dual-arm welding (±0.5 mm torch positioning) produces welds inspected by RT for zero porosity/slag (Class 1 standards).

• Post-welding stress relief includes 620–650℃ annealing (6 hours) and 20–50 Hz vibratory aging (4 hours), reducing residual stress to ≤50 MPa (vs. 80–100 MPa traditionally).

2. Key Component Production

• Eccentric Shaft: 42CrMoV undergoes electroslag remelting (purity ≥99.95%), forging, induction hardening (55–60 HRC surface, 5–8 mm depth), and precision grinding to Ra ≤0.4 μm (roundness ≤0.003 mm).

• Hydraulic System: Cylinders use cold-drawn tubes (H7 tolerance, Ra ≤0.8 μm). Piston rods feature nano-composite chrome plating (0.12–0.15 mm, ≥1000 HV). Seals are imported polyurethane (-40–120℃ resistance) for reliable operation at -30℃.

3. Intelligent Assembly & Commissioning

• Modular Assembly: Lean production cells preassemble modules (frame, moving jaw, hydraulics) before final assembly, with laser tracker calibration (coaxiality ≤0.02 mm).

• Smart Debugging: IIoT integration collects 100+ parameters (bearing temp, vibration, current) to build a digital twin, simulating performance under varying conditions (e.g., feed fluctuations) for parameter optimization.

4. Factory Testing

• 100-hour full-load tests (vs. 4 hours traditionally) crush 250 MPa granite, monitoring: bearing temperature rise ≤35℃, product 合格率 ≥98%, noise ≤80 dB. Data is cloud-stored for remote client access.

III. Quality Control Processes

1. Material & Component Qualification

• Raw materials (steel, castings) require traceability reports (heat number, chemistry, mechanics) and -40℃ impact testing (≥34 J for cold regions).

• Imported components (bearings, seals) need CE certification; domestic parts undergo equivalence testing to match imported performance.

2. In-Process Control

• Welding uses real-time monitoring (current, voltage, speed) with phased array UT (detecting 0.1 mm cracks).

• Machining on DMG 5-axis centers ensures key tolerances ≤50% of design limits (e.g., shaft eccentricity error ≤0.01 mm).

3. Certifications & Testing

• Complies with EU CE (2006/42/EC), ISO 14001 (dust ≤5 mg/m³), and ISO 45001 (emergency stop ≤0.1 s).

• Extreme condition testing: rain (100 mm/h), dust (500 mg/m³), and -30℃ operation validate reliability.

IV. Applications in Production Lines

1. Premium Aggregate Production

• Produces high-quality sand for high-speed railways/nuclear plants (flakiness ≤8%, meeting DIN 1045-1). E.g., a 500 t/h German line uses ESJC for concrete aggregates.

2. Metal Ore Processing

• Reduces fine ore loss (over-crushing ≤5% vs. 10–15% traditionally) in gold/copper mines, boosting recovery. E.g., an Australian gold mine increased recovery by 3%.

3. Environmental Recycling

• Processes construction waste (concrete, reinforced concrete) with hydraulic protection to expel metal debris. Recycled aggregates (≤50 mm) meet EU EN 12620 for recycled concrete.

4. Large Infrastructure

• Crushes basalt/diabase for asphalt pavements (strength ≥160 MPa) in highways/bridges. E.g., a Saudi highway project ran 3000 hours non-stop.

V. Key Advantages Over Traditional Crushers

• Eco-Friendliness: Complies with EU Stage V emissions, strict dust/noise controls for global markets.

• Intelligence: Predictive maintenance (AI-driven fault 预警 7–10 days in advance) cuts costs by 30%.

• Versatility: Modular design and wide-temperature components suit high altitudes (≥4000 m), -40℃ cold, and 90% humidity.
